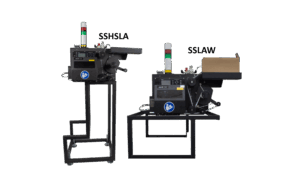

The UniPrint116 SSHSLA and SSLAW models are both top apply machines. The two models are essentially the same with only a few differences (i.e., stand and the way the machine communicates), and as such, this page will cover both.
The SSLAW model has both an UniPrint109 and UniPrint116 version. The differences between the UniPrint109 and UniPrint116 models are the main board (blue vs red), addition of a regulator, and the upgraded Norgren Valve to the MAC Valve. There is no UniPrint109 version for the SSHSLA model.
Would you like IMI to repair your Machine?
If you would like IMI to repair your machine, click here to view the process.
Documentation
Support QR Codes for UniPrint Models
SSHSLA RFID Recommended Spare Parts
SSLAW RFID Recommended Spare Parts
Videos
The videos below give instruction on tasks necessary to maintain/operate Innovative Machine equipment.
Each video shows procedures performed on a SSHSLA model, but the same steps apply to the SSLAW model:
SSHSLA Overview
SSLAW Overview
Loading labels on a SSHSLA/SSLAW
SSLAW/SSHSLA Blow Head Adjustment
How to Clean an SSHSLA after a Sort
UniPrint116 – SKB Shipping Crate
M8485 to S84 Conversion
- SSHSLA Overview
- SSLAW Overview
- Loading labels on a SSHSLA / SSLAW
- SSLAW/SSHSLA Blow Head Adjustment
- How to Clean an SSHSLA after a Sort
- UniPrint116 – SKB Shipping Crate
- M8485 to S84 Conversion
Each video below is demonstrated on either a HSLA or SSHSLA model, but the steps/procedures will be the same for all UniPrint models:
Print Engine Removal/Replacement
UniPrint116 – Air Assist Rod Replacement
UniPrint116 – Air Valve Replacement
UniPrint116 – Air Tubing Replacement
Regulator Replacement
Take Up Motor Replacement
Low Label Sensor Replacement
On/Off Switch Replacement and Testing
- Print Engine Removal/Replacement
- UniPrint116 – Air Assist Rod Replacement
- UniPrint116 – Air Valve Replacement
- UniPrint116 – Air Tubing Replacement
- Regulator Replacement
- Take Up Motor Replacement
- Low Label Sensor Replacement
- On/Off Switch Replacement and Testing
Each video below is demonstrated on either a Left Hand or Right Hand S84 Print Engine, but the steps/procedures will be the same for both models:
Label Offset
S84 Gap Sensor Calibration
Life and Head Count
Installing a Stage 1 Kit in a S84 Print Engine
Installing a Stage 2 Kit in a S84 Print Engine
Using an EXT DB-25 Tester on a S84 Print Engine
Tracking Collar Replacement
RFID Tuning Insert
- Label Offset
- S84 Gap Sensor Calibration
- Life and Head Count
- Installing a Stage 1 Kit in a S84 Print Engine
- Installing a Stage 2 Kit in a S84 Print Engine
- Using an EXT DB-25 Tester on a S84 Print Engine
- Tracking Collar Replacement
- RFID Tuning Insert
Replacement Parts
Hover over the teal dots to view spare parts and part numbers for the machine.
UniPrint116 SSHSLA RFID Printer
Coupa #7187255
The following photos display the UniPrint116 SSLAW model. If a part is specific to a certain model (UniPrint109 or UniPrint116), the textbox will note both options and part numbers if applicable.
Hover over the teal dots to view spare parts and part numbers for the machine.
UniPrint116 SSLAW RFID Printer
Coupa #7187256
Left Hand S84ex Stage 1 Kit
Coupa #7187295
S84ex Print Plate
Coupa #7121254
Left Hand S84ex Stage 2 Kit
Coupa #7187299
IMI Tool Kit
Coupa #7187286
IMI Sato S84 Tester
Coupa #7187391
EZ Wipes
Coupa #7186057
IMI Shipping Crate
Coupa #7187268
IMI Printer Cover
Coupa #7187271
